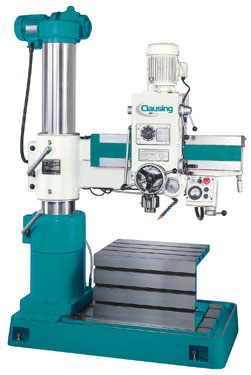

Model CL920A Radial Arm Drill Presss

Standard Features

  • Limit switch
  • High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
  • Powerful 2 Hp spindle drive motor for heavy-duty cutting
  • Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394" to 7.874"
  • Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
  • Coolant system
  • Low volt and overload protection
  • CSA Electrics Standard
  • Tool kit and manuals
PDF Version
Model CL920A Radial Arm Drill Press
Model CL920A Radial Arm Drill Press
Specifications & Dimensions
Working Area Drill Head
Column Sleeve Dia. (E) 8.28" (210mm) Spindle Taper 4MT
Column Face to Spindle Center Spindle Stroke 8.66" (220mm)
  Maximum (D+C) 37.4" (950mm) Quill Diameter 2.95" (75mm)
  Minimum (D) 8.7" (220mm) Number of Spindle Speeds 6
Spindle Head Travel (C) 28.7" (730mm) Spindle Speeds (rpm) 88, 154, 282, 455, 796, 1500
Base Surface to Spindle End Number of Feeds 3
  Maximum (A) 47.6" (1210mm) Spindle Feed Rate (in/rev.) 0.002"/0.0035"/0.006"
  Minimum (B) 13.8" (350mm) (mm/rev.) .05mm/.09mm/.15mm)
Arm Vertical Travel (A-B) 25.2" (640mm) Spindle Drive Motor 2 hp (1.5 Kw)
Arm Rotation (Right & Left) 180 Elevating Motor 1 hp (.75 Kw)
Baseplate Working Surface 35.5" x 25.3" (902x643mm) Coolant Pump Motor 1/8 hp (.10 Kw)
Box Table Area
  Length (L) 23.6" (600mm) Capacities
  Width (K) 17.5" (445mm) Drilling In Steel 1.26" (32mm)
  Height (H) 15" (380mm) Drilling In Cast Iron 2" (50mm)
Base Dimensions Tapping In Steel 1" (25mm)
  Floor Area (R x S) 49.6" x 25.2" (1260x640mm) Tapping In Cast Iron 1.26" (32mm)
  Height (Q) 6.5" (160mm) Boring In Steel 2.75" (70mm)
    Boring In Cast Iron 4.06" (105mm)
Dimensions/Weights
Max. Machine Height (F) 91.3" (2320mm)
Base and Column Height (G) 79.1" (2010mm)
Shipping Dimensions
(L x W x H)
71.1" (1806mm) x 32.5" (826mm) x 86.2" (2190mm)
Net Weight 2,756 lbs. (1250kg)
Shipping Weight 3,086 lbs. (1400kg)
