Medium Radial Arm Drill Presses

Quick Links: Model CL1100 | Model CL1230H | Model CL1250H | Model CLC1250H

Model CL1100 Radial Arm Drill Press

Standard Features

  • Limit switch
  • Interlocked end guard door for easy access for maintenance & changing end train gears
  • High speed gears are made of Nickel-Chrome Steel & are heat-treated & ground for durability
  • Powerful 2 Hp spindle drive motor for heavy-duty cutting
  • Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394" to 7.874"
  • Special spindle balance mechanism, superior to traditional balance mechanism & extends Balance Spring life
  • Coolant system
  • Low volt & overload protection
  • CSA Electrics Standard
  • Tool kit & manuals
PDF Version
Model CL1100 Radial Arm Drill Press
Model CL1100 Radial Arm Drill Press
Specifications & Dimensions
Model CL1100
Working Area Drill Head
Column Sleeve Dia. (E) 8.28" (210mm) Spindle Taper 4MT
Column Face to Spindle Center Spindle Stroke 8.66" (220mm)
  Maximum (D+C) 33.5" (850mm) Quill Diameter 2.95" (75mm)
  Minimum (D) 8.7" (220mm) Number of Spindle Speeds 6
Spindle Head Travel (C) 24.8" (630mm) Spindle Speeds (rpm) 88, 154, 282, 455, 796, 1500
Base Surface to Spindle End Number of Feeds 3
  Maximum (A) 47.6" (1270mm) Spindle Feed Rate (in/rev.) 0.002" 0.0035" 0.006"
  Minimum (B) 13.8" (350mm) (mm/rev.) (.05mm), (.09mm), (.15mm)
Arm Vertical Travel (A-B) 25.2" (640mm) Spindle Drive Motor 2 hp (1.5 Kw)
Arm Rotation (Right & Left) 180° Elevating Motor 1 hp (.75 Kw)
Baseplate Working Surface 35.5" x 25.3" (902x643mm) Coolant Pump Motor 1/8 hp (.10 Kw)
Box Table Area
  Length (L) 23.6" (600mm) Capacities
  Width (K) 17.5" (445mm) Drilling In Steel 1.26" (32mm)
  Height (H) 15" (380mm) Drilling In Cast Iron 2" (50mm)
Base Dimensions Tapping In Steel 1" (25mm)
  Floor Area (R x S) 49.6" x 25.2" (1260x640mm) Tapping In Cast Iron 1.26" (32mm)
  Height (Q) 6.5" (160mm) Boring In Steel 2.75" (70mm)
  Boring In Cast Iron 4.06" (105mm)
Dimensions/Weights
Max. Machine Height (F) 91.3" (2170mm)
Base & Column Height (G) 79.1" (2010mm)
Shipping Dimensions
(L x W x H)
66.1" (1680mm) x 32.5" (826mm) x 86.2" (2190mm)
Net Weight 2,645 lbs. (1200kg)
Shipping Weight 2,954 lbs. (1340kg)

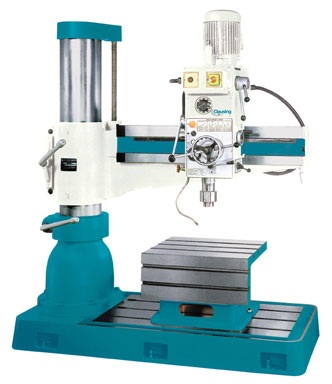

Model CL1230H Radial Arm Drill Press

Standard Features

  • High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning
  • The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
  • High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
  • Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
  • Overload protection device
  • The main spindle is balanced by an adjustable block
  • Coolant system
  • Low volt and overload protection
  • Equipped withhydraulic clamping. With a push of a button you can have arm unclamped then move vertically, or stop then clamp automatically
  • CSA Electrics Standard
  • Tool kit and manuals
PDF Version
Model CL1230H Radial Arm Drill Press
Model CL1230H Radial Arm Drill Press
Specifications & Dimensions
Specifications and Dimensions
Model CL1230H
Working Area Drill Head
Column Sleeve Dia. (E)
11.81" (300mm)
Spindle Taper
4MT
Column Face to Spindle Center
Spindle Stroke
9.84" (250mm)
  Maximum (D+C)
46.1" (1170mm)
Quill Diameter
3.15" (80mm)
  Minimum (D)
13.4" (340mm)
Number of Spindle Speeds
2
  Spindle Head Travel (C)
35.0" (890mm)
Spindle Speeds (rpm)
44-1500
Base Surface to Spindle End
Number of Feeds
3
  Maximum (A)
53.9" (1370mm)
Spindle Feed Rate (in(mm)/rev.)
0.002"(.05mm), 0.0035"(.09mm), 0.006"(.15mm)
  Minimum (B)
19.3" (490mm)
Spindle Drive Motor (2-speed)
3 hp (2.25 Kw)
Arm Vertical Travel (A-B)
24.8" (630mm)
Elevating Motor
1 hp (.75 Kw)
Arm Rotation (Right & Left)
180°
Clamping Motor
1 hp (.75 Kw)

Coolant Pump Motor
1/8 hp (.10 Kw)
Baseplate Working Surface
48" x 29.1"(1219 x 739mm)

Box Table Area
Capacities
  Length (L)
25.0" (635mm)
Drilling In Steel
1.65" (42mm)
  Width (K)
24.5" (520mm)
Drilling In Cast Iron
2.16" (55mm)
  Height (H)
16.3" (415mm)
Tapping In Steel
1" (25mm)
Base Dimensions
Tapping In Cast Iron
1.38" (38mm)
  Floor Area (R x S)
67.9" x 28.1"(1725 x 715mm)
Boring In Steel
3.38" (86mm)
  Height (Q)
7.1" (180mm)
Boring In Cast Iron
4.72" (120mm)

Dimensions/Weights
Max. Machine Height (F)
109.5" (2780mm)

Base and Column Height (G)
81.1" (2060mm)
Shipping Dimensions
(L x W x H)
80.1" (2035mm) x
32.5" (862mm) x 88.2" (2240mm)
Net Weight
4,630 lbs. (2100kg)
Shipping Weight
5,071 lbs. (2300kg)



Model CL 1250H Radial Arm Drill Press

Standard Features

  • High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning
  • The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
  • High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
  • Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
  • Overload protection device
  • The main spindle is balanced by an adjustable block
  • Coolant system
  • Low volt and overload protection
  • Equipped withhydraulic clamping. With a push of a button you can have arm unclamped then move vertically, or stop then clamp automatically
  • CSA Electrics Standard
  • Tool kit and manuals
PDF Version
Model CL 1250H Radial Arm Drill Press
Model CL 1250H Radial Arm Drill Press
Specifications & Dimensions
Specifications and Dimensions
Model CL1250H
Working Area Drill Head
Column Sleeve Dia. (E)
11.81" (300mm)
Spindle Taper
5MT
Column Face to Spindle Center
Spindle Stroke
10.63" (270mm)
  Maximum (D+C)
49.21" (1250mm)
Quill Diameter
3.15" (80mm)
  Minimum (D)
14.17" (360mm)
Number of Spindle Speeds
12
Spindle Head Travel (C)
35.04" (890mm)
Spindle Speeds (rpm)
56-1450
Base Surface to Spindle End
Number of Steps
3
  Maximum (A)
52.95" (1345mm)
Spindle Feed Rate (in(mm)/rev.)
0.0023"(.06mm), 0.004"(.10mm), 0.008"(.20mm)
  Minimum (B)
17.36" (441mm)
Spindle Drive Motor (2-speed)
5 hp (3.8 Kw)
Arm Vertical Travel (A-B)
24.8" (630mm)
Elevating Motor
1 hp (.75 Kw)
Arm Rotation (Right & Left)
180°
Clamping Motor
1 hp (.75 Kw)
    Coolant Pump Motor
1/8 hp (.10 Kw)
Baseplate Working Surface
48" x 29.1"(1219 x 739mm)

Box Table Area
Capacities
  Length (L)
25.0" (635mm)
Drilling In Steel
1.97" (50mm)
  Width (K)
24.5" (520mm)
Drilling In Cast Iron
2.36" (60mm)
  Height (H)
16.5" (420mm)
Tapping In Steel
1.57" (40mm)
Base Dimensions
Tapping In Cast Iron
1.97" (50mm)
Floor Area (R x S)
70.3" x 30.9"(1785 x 785mm)
Boring In Steel
4.33" (110mm)
Height (Q)
7.8" (190mm)
Boring In Cast Iron
6.55" (165mm)
Dimensions/Weights
Max. Machine Height (F)
104.1" (2645mm)

Base and Column Height (G)
81.9" (2080mm)
Shipping Dimensions
(L x W x H)
81.1" (2060mm) x 39.2" (995mm) x 88.2" (2240mm)
Net Weight
5,071 lbs. (2300kg)
Shipping Weight
5,512 lbs. (2500kg)



Model CLC 1250H Radial Arm Drill Press

Standard Features

  • High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning
  • The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
  • High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
  • Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
  • Overload protection device
  • The main spindle is balanced by an adjustable block
  • Coolant system
  • Low volt and overload protection
  • Equipped withhydraulic clamping. With a push of a button you can have arm unclamped then move vertically, or stop then clamp automatically
  • CSA Electrics Standard
  • Tool kit and manuals
PDF Version
Model CLC 1250H Radial Arm Drill Press
Model CLC 1250H Radial Arm Drill Press
Specifications & Dimensions
Specifications and Dimensions
Model CL1250H
Working Area Drill Head
Column Sleeve Dia. (E)
11.81" (300mm)
Spindle Taper
5MT
Column Face to Spindle Center
Spindle Stroke
10.63" (270mm)
  Maximum (D+C)
49.21" (1250mm)
Quill Diameter
3.15" (80mm)
  Minimum (D)
14.17" (360mm)
Number of Spindle Speeds
12
Spindle Head Travel (C)
35.04" (890mm)
Spindle Speeds (rpm)
56-1450
Base Surface to Spindle End
Number of Steps
3
  Maximum (A)
52.95" (1345mm)
Spindle Feed Rate (in(mm)/rev.)
0.0023"(.06mm), 0.004"(.10mm), 0.008"(.20mm)
  Minimum (B)
17.36" (441mm)
Spindle Drive Motor (2-speed)
5 hp (3.8 Kw)
Arm Vertical Travel (A-B)
24.8" (630mm)
Elevating Motor
1 hp (.75 Kw)
Arm Rotation (Right & Left)
180°
Clamping Motor
1 hp (.75 Kw)
    Coolant Pump Motor
1/8 hp (.10 Kw)
Baseplate Working Surface
48" x 29.1"(1219 x 739mm)

Box Table Area
Capacities
  Length (L)
25.0" (635mm)
Drilling In Steel
1.97" (50mm)
  Width (K)
24.5" (520mm)
Drilling In Cast Iron
2.36" (60mm)
  Height (H)
16.5" (420mm)
Tapping In Steel
1.57" (40mm)
Base Dimensions
Tapping In Cast Iron
1.97" (50mm)
Floor Area (R x S)
70.3" x 30.9"(1785 x 785mm)
Boring In Steel
4.33" (110mm)
Height (Q)
7.8" (190mm)
Boring In Cast Iron
6.55" (165mm)
Dimensions/Weights
Max. Machine Height (F)
104.1" (2645mm)

Base and Column Height (G)
81.9" (2080mm)
Shipping Dimensions
(L x W x H)
81.1" (2060mm) x 39.2" (995mm) x 88.2" (2240mm)
Net Weight
5,071 lbs. (2300kg)
Shipping Weight
5,512 lbs. (2500kg)
